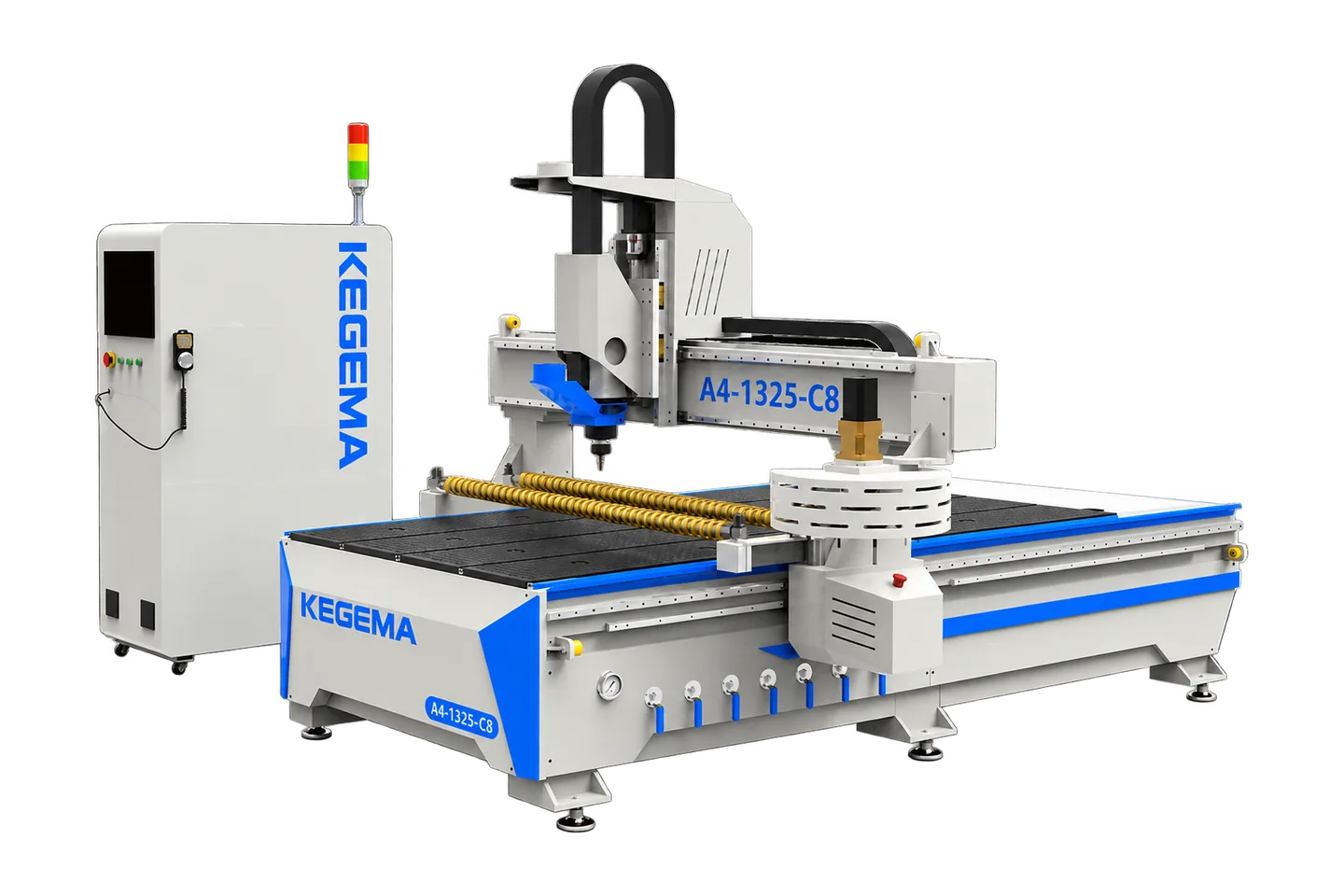

A4-1325-C8 Disc ATC CNC professional multifunctional machining center, with disc tool changer magazine can achieve efficient automatically change 8-12 tools, with high-end control systems and electrical components, suitable for complex pattern processing and efficient batch processing.
Machine Features
HQD 9.0 kW ATC Air-cooled ISO30-ER32
Delta high frequency 11 kW inverter
Vacuum table with 7.5 kW vacuum pump
Syntec 1000W AC servo motor and driver
Japan Shimpo planetary reducer
Syntec 60WE bus control system
Disc type 8 tools changer magazine
Automatic oil system and 3.0 kW dust collector
HQD 9 kW ATC Spindle
With faster speed 0-24000 rpm
Air Cooled Spindle with ISO30-ER32
High precision with stable performance
Syntec 1000W AC Servo Motor
Z-axis AC servo motor with brake
Absolute value 1000W AC servo motor
With Japan Shimpo planetary reducer
Efficient Disc Tool Magazine
Automatic switching of 8-12 tools
To meet diverse processing needs
Fast tool change with high efficiency
Syntec 60WE Bus Control System
Famous 60WE Serial-bus controller
Easy to operate with hand wheel
Multi-functional, stable performance
Parameter
Item
A4-1325-C8
Working Area
1300 × 2500 × 300 mm
Max. Moving Speed
45 m/min
Max. Working Speed
30 m/min
ATC Spindle
HQD 9.0 kW-ISO30 Air cooling
Motor
Taiwan Syntec Absolute value
Reducer
Japan Shimpo planetary reducer
Control System
Taiwan Syntec Bus control
Electrical parts
France Schneider
Tool Magazine
Disc 8pcs tools
Interested in the A4-1325-C8?
We advise you on working area, equipment, delivery and commissioning – with installation and training by our German technician team.
