Kegema 1700 PRO
Heat-Assist Laminator
Finish and protect your large format prints in record time. The Kegema 1700 PRO is a pneumatic hot/cold laminator with an integrated longitudinal cutting system. Maximum efficiency and 100% bubble-free results for professional signage.
- Integrated Longitudinal Cutter: 3 adjustable tungsten steel blades (edge trimming while laminating)
- Heat-Assist (up to 60°C): Heated top roller prevents "silvering" (micro-bubbles)
- Productivity: Laminate at up to 12 metres per minute (1630 mm width)
- Premium Rollers: 130 mm silicone rollers (anti-static & adhesive-repellent)
Specifications: Kegema 1700 PRO
Industry standard for roll-to-roll and piece-to-piece laminating.
| Max. Laminating Width | 1630 mm (64 inch) |
|---|---|
| Max. Material Thickness (Mounting) | Up to 28 mm (pneumatic roller lift) |
| Speed | Up to 12 m/min (continuously adjustable) |
| Temperature & Heating | Infrared heating, adjustable up to 60°C |
| Cutting System (Integrated) | 2x single blade, 1x double blade (tungsten steel) |
| Safety | Optical laser sensor (light barrier) & emergency stop |

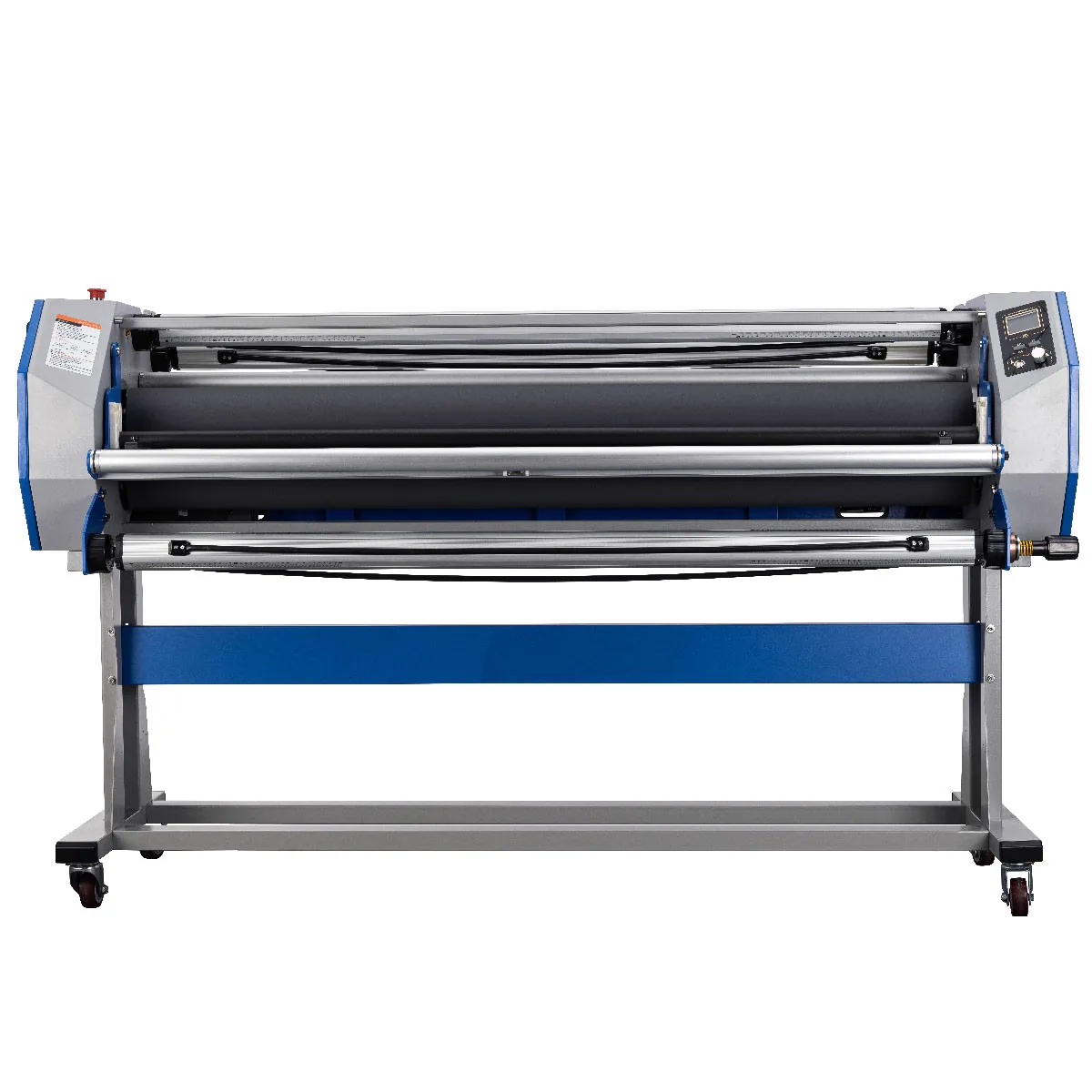

Kegema 1700 LITE
The Smart Alternative
You don't need an integrated trimmer, but don't want to compromise on industrial laminating quality? The Kegema 1700 LITE is the perfect entry-level model into the professional large format sector.
- Same Working Width: 1630 mm laminating width
- Pneumatic System: Even pressing pressure thanks to air pressure cylinder
- Heat-Assist: Also up to 60°C heated top roller
- Roller System: 120 mm premium silicone rollers (speed up to 9 m/min)
Perfect Finish for Every Application
Our roll laminators protect your prints from UV radiation, scratches and weathering.
Car Wrapping & Vehicle Graphics
Applying cast protective laminates to printed car wrapping films. The heated roller (Heat-Assist) optimally activates the adhesive and completely prevents white inclusions (silvering).
Board Mounting
Thanks to the 28 mm roller lift, Kegema laminators are perfect for bubble-free mounting of prints and films onto rigid substrates such as Alu-Dibond, Forex, acrylic glass or lightweight foam boards.
Floor Graphics & Stickers
Roll-by-roll production of non-slip floor stickers, window displays and labels. The PRO model trims the white borders directly during laminating.
Wide Brand Variety & Used Market
In our main shop Plotter-FIX you will regularly find refurbished laminators from the absolute premium manufacturers. Secure workshop-tested used machines from brands like SEAL, Kala, Neschen, Mimaki or Easymount including service and warranty.
We Are Happy to Advise You
Do you have questions about the differences between the PRO and LITE model? Our German support team helps you choose the right laminator for your workflow.
Your Direct Contact:
Plotter-FIX GmbH / Kegema
Felix-Wankel-Straße 15
53859 Niederkassel, Germany
